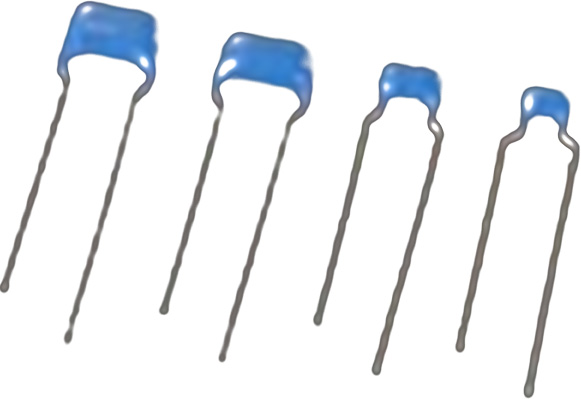

Wielowarstwowe
kondensatory ceramiczne typu DIP
Wszystkie
elementy są zgodne z dyrektywą RoHS
|
|
|
Seria CD:
- duża pojemność przy małym rozmiarze
- wygodny
montaż
- temperatura pracy
-55...+85 °C
(X5R) and -25...+85 °C (Y5U)
|
 |
| Typ |
Napięcie znamionowe
[V] |
Pojemność
[µF] |
Tolerancja
[%] |
Dielektryk
(symbol EIA) |
Rozmiar
(L x H)
|
| D47Y5U1C225Z53 |
16 |
2,2 |
-20% / +80% |
Y5U |
7,5
x 6,3 |
| D47Y5U1C335Z53 |
3,3 |
7,5
x 6,3 |
| D67Y5U1C475Z51 |
4,7 |
7,5
x 7,5 |
| D33Y5U1E104Z
[*] |
25 |
0,1 |
3,8
x 6,0 |
| D55Y5U1E105Z
[*] |
1 |
5,0
x 6,3 |
| D55Y5U1E225Z
[*] |
2,2 |
5,0
x 6,3 |
| D47Y5U1E105Z53 |
1 |
7,5
x 6,3 |
| D47Y5U1E225Z53 |
2,2 |
7,5
x 6,3 |
| D47Y5U1E475Z53 |
4,7 |
7,5
x 6,3 |
| D47Y5U1E106Z53 |
10 |
7,5
x 6,3 |
| D67Y5U1E225Z51 |
2,2 |
7,5
x 7,5 |
| D67Y5U1E335Z51 |
3,3 |
7,5
x 7,5 |
| D77Y5U1E156Z51 |
15 |
8,0
x 9,0 |
| D77Y5U1E226Z51 |
22 |
8,0
x 9,0 |
| D33Y5U1H102Z
[*] |
50 |
0,001 |
3,8
x 6,0 |
| D33Y5U1H222Z
[*] |
0,0022 |
3,8
x 6,0 |
| D33Y5U1H472Z
[*] |
0,0047 |
3,8
x 6,0 |
| D33Y5U1H103Z
[*] |
0,01 |
3,8 x 6,0 |
| D33Y5U1H223Z
[*] |
0,022 |
3,8 x 6,0 |
| D33Y5U1H473Z
[*] |
0,047 |
3,8 x 6,0 |
| D33Y5U1H104Z
[*] |
0,1 |
3,8 x 6,0 |
| D55Y5U1H222Z
[*] |
0,0022 |
5,0
x 6,3 |
| D55Y5U1H472Z
[*] |
0,0047 |
5,0 x 6,3 |
| D55Y5U1H103Z
[*] |
0,01 |
5,0 x 6,3 |
| D55Y5U1H223Z
[*] |
0,022 |
5,0 x 6,3 |
| D55Y5U1H473Z
[*] |
0,047 |
5,0 x 6,3 |
| D55Y5U1H104Z [*] |
0,1 |
5,0
x 6,3 |
| D55Y5U1H224Z [*] |
0,22 |
5,0
x 6,3 |
| D55Y5U1H474Z [*] |
0,47 |
5,0
x 6,3 |
| D55Y5U1H105Z [*] |
1 |
5,0
x 6,3 |
| D55Y5U1H155Z [*] |
1,5 |
5,0
x 6,3 |
| D47Y5U1H474Z53 |
0,47 |
7,5
x 6,3 |
| D47Y5U1H105Z53 |
1 |
7,5
x 6,3 |
| D47Y5U1H225Z53 |
2,2 |
7,5
x 6,3 |
| D47Y5U1H335Z53 |
3,3 |
7,5
x 6,3 |
| D67Y5U1H105Z51 |
1 |
7,5
x 7,5 |
| D67Y5U1H155Z51 |
1,5 |
7,5
x 7,5 |
| D77Y5U1H475Z51 |
4,7 |
8,0 x 9,0 |
| D77Y5U1H106Z51 |
10 |
8,0 x 9,0 |
| D33X5R1H102K
[*] |
0,001 |
±10% |
X5R |
3,8 x 6,0 |
| D33X5R1H222K
[*] |
0,0022 |
3,8 x 6,0 |
| D33X5R1H472K
[*] |
0,0047 |
3,8 x 6,0 |
| D33X5R1H103K
[*] |
0,01 |
3,8 x 6,0 |
| D33X5R1H223K
[*] |
0,022 |
3,8 x 6,0 |
| D33X5R1H473K
[*] |
0,047 |
3,8 x 6,0 |
| D33X5R1H104K [*] |
0,1 |
3,8
x 6,0 |
| D55X5R1H103K [*] |
0,01 |
5,0
x 6,3 |
| D55X5R1H223K [*] |
0,022 |
5,0
x 6,3 |
| D55X5R1H473K [*] |
0,047 |
5,0
x 6,3 |
| D55X5R1H104K
[*] |
0,1 |
5,0 x 6,3 |
| D55X5R1H224K
[*] |
0,22 |
5,0 x 6,3 |
| D55X5R1H474K
[*] |
0,47 |
5,0 x 6,3 |
| D55X5R1H105K
[*] |
1 |
5,0 x 6,3 |
| D55X5R1H225K
[*] |
2,2 |
5,0
x 6,3 |
| D47X5R1H104K53 |
0,1 |
7,5
x 6,3 |
| D47X5R1H224K53 |
0,22 |
7,5
x 6,3 |
| D47X5R1H474K53 |
0,47 |
7,5
x 6,3 |
| D47X5R1H105K53 |
1 |
7,5
x 6,3 |
| D47X5R1H225K53 |
2,2 |
7,5
x 6,3 |
| D47X5R1H475K53 |
4,7 |
7,5
x 6,3 |
| D77X5R1H105K51 |
1 |
8,0 x 9,0 |
| D77X5R1H225K51 |
2,2 |
8,0 x 9,0 |
| D77X5R1H475K51 |
4,7 |
8,0 x 9,0 |
| D77X5R1H106K51 |
10 |
8,0
x 9,0 |
| D55Y5U2A224Z51 |
100 |
0,22 |
-20%
/ +80% |
Y5U |
5,0 x 6,3 |
| D55Y5U2A334Z51 |
0,33 |
5,0 x 6,3 |
| D47Y5U2A474Z53 |
0,47 |
7,5
x 6,3 |
| D47Y5U2A105Z53 |
1 |
7,5
x 6,3 |
| D77Y5U2A225Z51 |
2,2 |
8,0 x 9,0 |
| D77Y5U2A335Z51 |
3,3 |
8,0 x 9,0 |
| D33X5R2A102K
[*] |
0,001 |
±10% |
X5R |
3,8 x 6,0 |
| D33X5R2A222K
[*] |
0,0022 |
3,8 x 6,0 |
| D33X5R2A472K
[*] |
0,0047 |
3,8 x 6,0 |
| D33X5T2A103K
[*] |
0,01 |
3,8 x 6,0 |
| D55X5R2A103K
[*] |
0,01 |
5,0 x 6,3 |
| D55X5R2A223K
[*] |
0,022 |
5,0 x 6,3 |
| D55X5R2A473K
[*] |
0,047 |
5,0 x 6,3 |
| D55X5R2A104K
[*] |
0,1 |
5,0 x 6,3 |
| D55X5R2A224K
[*] |
0,22 |
5,0 x 6,3 |
| D55X5R2A474K
[*] |
0,47 |
5,0 x 6,3 |
| D55X5R2A105K
[*] |
1 |
5,0 x 6,3 |
| D47X5R2A104K53 |
0,1 |
7,5
x 6,3 |
| D47X5R2A224K53 |
0,22 |
7,5
x 6,3 |
| D47X5R2A474K53 |
0,47 |
7,5
x 6,3 |
| D47X5R2A105K53 |
1 |
7,5
x 6,3 |
| D47X5R2A225K53 |
2,2 |
7,5
x 6,3 |
| D77X5R2A105K51 |
1 |
8,0 x 9,0 |
| D77X5R2A225K51 |
2,2 |
8,0 x 9,0 |
| D77X5R2A475K51 |
4,7 |
8,0 x 9,0 |
|
|
|
|
|
|
| [*]
- kod kształtu
wyprowadzeń |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
