Header Connectors

Box Header Connectors

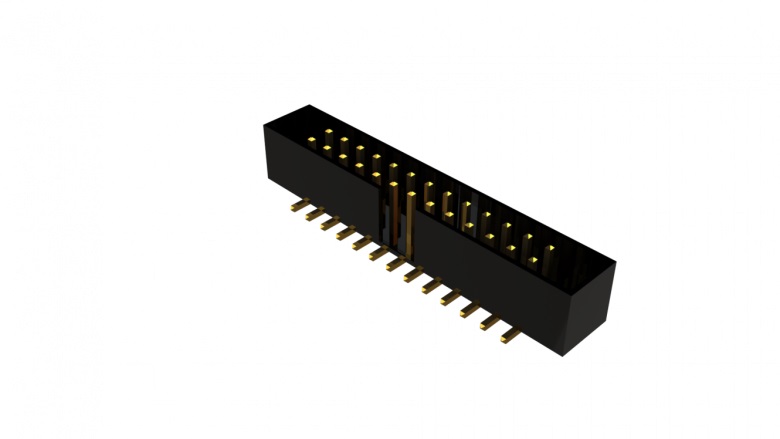

Header connectors with pins encompassed by side dividers which are molded onto a plastic base. They are widely used for board to board or wire to board connections, available in multiple contact spacing options, in single, two or three row configurations.

Part type Description Total number
of contacts		 Contact
spacing		 Row
spacing		 Contact
resistance
max.
[mΩ]		 Insulation
resistance
min.
[MΩ]		 Operating
temperature
[°C]		 Enlarge using the cursor
150 Series
 (201 kB)
  • box header connectors
  • 1, 2 or 3 rows of pins
  • a variety of spacing, colors and styles
  • mounting options: vertical, right angle or custom bends
  • sockets available with right angle and SMT contacts
  • contact plating: gold plating on contact areas, tin plating on tails
  • available with various pin heights and board depths
 2 - 290 0.100"
(2.54 mm)		 0.100"
(2.54 mm)		 10 1000 -40 – +105
