In-line Connectors

Waterproof In-line Connectors

A family of waterproof E-seal in-line Wire-to-Wire or Wire-to-Board connectors providing a reliable interconnect solution in harsh environments.

Part type	Description	Total number of contacts	Contact spacing	Row spacing	Current max. [A]	Insulator withstanding voltage min. [V]	Contact resistance max. [mΩ]	Insulation resistance min. [MΩ]	Operating temperature [°C]	Enlarge using the cursor

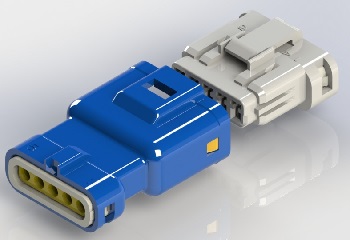

560 Series  (954 kB)	waterproof connectors (male and female) available in Wire-to-Wire and Wire-to-Board options installable crimped contacts double latch solution provides locking mechanism seals preassembled into housing internal polarization to prevent mismatching available with wire already installed contact plating: tin waterproof grade: IP67 Available versions: 560 Series	2, 3, 5	2.5 mm		3	1000	15	1000	-40 – +105	1

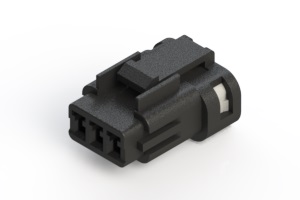

565 Series  (582 kB)	waterproof connectors (male and female) available in Wire-to-Wire and Wire-to-Board options installable crimped contacts seals preassembled into housing internal polarization to prevent mismatching available with wire already installed contact plating: tin waterproof grade: IP67 Available versions: 565 Series	2, 3, 5	2.5 mm		3	1000	15	1000	-40 – +105	1

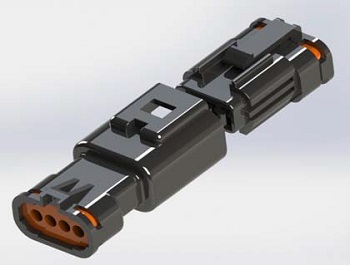

566 Series  (2791 kB)	waterproof connectors (male and female) available in Wire-to-Wire and Wire-to-Board options installable crimped contacts seals preassembled into housing internal polarization to prevent mismatching available with wire already installed contact plating: tin waterproof grade: IP67 Available versions: 566 Series	2, 3 (only for Wire-to-Board) 4, 6	2.0 mm		2	1000	10	1000	-40 – +105	1

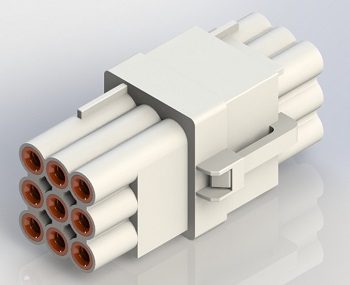

567 Series  (977 kB)	splash-proof connectors (male and female) available in Wire-to-Wire option installable crimped contacts seals preassembled into housing contact plating: tin waterproof grade: IP52 Available versions: 567 Series	1, 2, 3, 4 (2x2) 6 (3x2) 9 (3x3)	5.9 mm	5.0 mm	8	1700	10	1000	-40 – +105	1

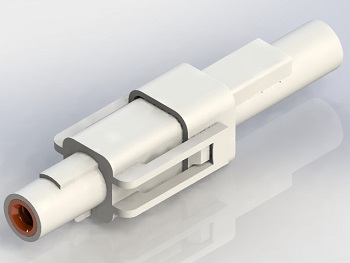

568 Series  (397 kB)	single splash-proof connector available in Wire-to-Wire option installable crimped contacts seals preassembled into housing contact plating: tin waterproof grade: IP52 Available versions: 568 Series	1			12	1700	10	1000	-40 – +105	1

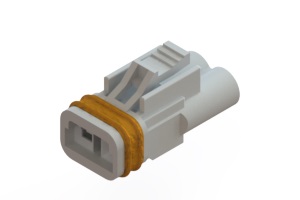

570 Series  (605 kB)	waterproof connectors (male and female) available in Wire-to-Wire and Wire-to-Board options installable crimped contacts internal polarization to prevent mismatching available with wire already installed contact plating: tin waterproof grade: IP67 Available versions: 572 Series	1, 2, 3	5.8 mm		10	1700	10	1000	-40 – +105	1

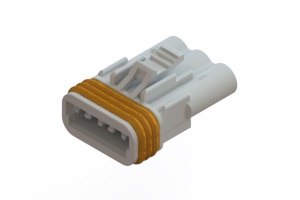

572 Series  (586 kB)	waterproof connectors (male and female) available in Wire-to-Wire and Wire-to-Board options installable crimped contacts double latch solution provides locking mechanism seals preassembled into housing internal polarization to prevent mismatching available with wire already installed contact plating: tin waterproof grade: IP67 Available versions: 572 Series	1, 2, 3	5.8 mm		10	1700	10	1000	-40 – +105	1
