HDMI connectors available in single or dual port versions and vertical or right angle orientations.

Part type	Description	Enlarge using the cursor
694A Series  (376 kB)	HDMI receptacles, Type-A 2.1 communication speed up to 48 Gbps contact tail: right angle SMT mounting to the PCB: through hole grounding tabs voltage rating: 40V AC contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694A Series	1

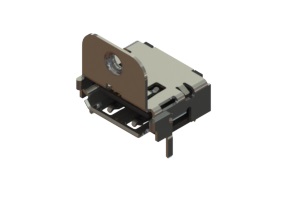

694B Series  (362 kB)	HDMI receptacles, Type-A communication speed up to 18 Gbps contact tail: right angle PCB mounting to the PCB: plastic posts and through hole grounding tabs connector options: M3 threaded mounting tab voltage rating: 40V AC contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694B Series	1

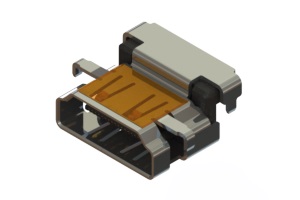

694C Series  (351 kB)	HDMI receptacles, Type-A standard or reverse mount communication speed up to 18 Gbps arrangement of contacts: mid-mount PCB contact tail: right angle PCB mounting to the PCB: through hole grounding tabs voltage rating: 40V AC contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694C Series	1

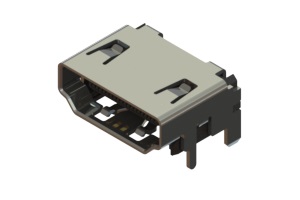

694D Series  (383 kB)	HDMI receptacles, Type-A standard or with EMI fingers communication speed up to 18 Gbps contact tail: right angle SMT mounting to the PCB: through hole grounding tabs contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694D Series	1

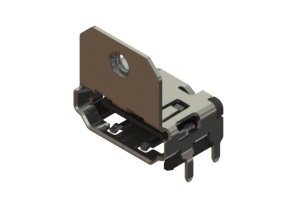

694E Series  (351 kB)	HDMI receptacles, Type-A communication speed up to 18 Gbps contact tail: right angle SMT mounting to the PCB: through hole grounding tabs connector options: M3 threaded mounting tab contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694E Series	1

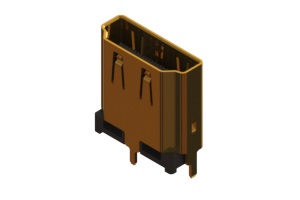

694F Series  (362 kB)	HDMI receptacles, Type-A communication speed up to 18 Gbps contact tail: vertical SMT mounting to the PCB: through hole grounding tabs contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694F Series	1

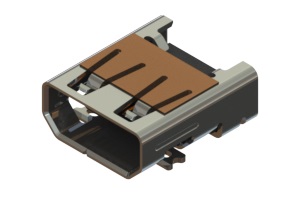

694H Series  (361 kB)	HDMI receptacles, Type-D communication speed up to 18 Gbps contact tail: right angle SMT mounting to the PCB: through hole grounding tabs and/or SMT grounding tabs contact plating: gold plating on contact areas, nickel under plating housing material: LCP Available versions: 694H Series	1
