DC/AC Inverters

Modified sine wave inverters
Model Description Input
DC voltage		 Output
AC voltage		 Output
AC power		 Enlarge using the cursor

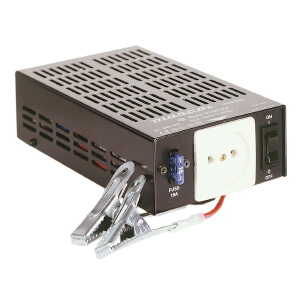

9150
 (255 kB)
  • modified sine wave
  • desktop type
  • short circuit proof and overvoltage protection at output
  • input: 6,3 mm push-on terminals (standard 1 m cord and battery clips)
 12 VDC 230 VAC 110 W
24 VDC 140 W
48 VDC 140 W

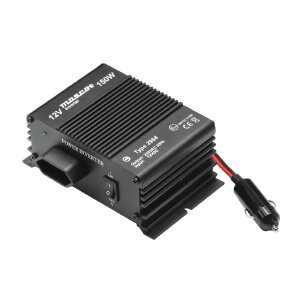

2984
 (237 kB)
  • modified sine wave
  • heat-sink type
  • short circuit proof at output
  • input terminals: cigarette plug or battery clips
  • built-in alarm
 12 VDC 230 VAC 150 W
24 VDC 150 W

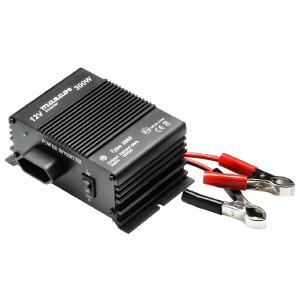

2985
 (237 kB)
  • modified sine wave
  • heat-sink type
  • short circuit proof at output
  • input terminals: battery clips
  • built-in alarm
 12 VDC 230 VAC 300 W
24 VDC 300 W

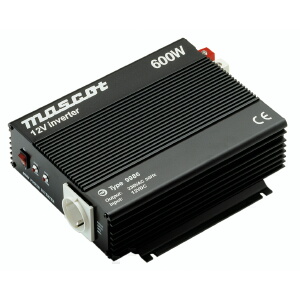

9986
 (260 kB)
  • modified sine wave
  • heat-sink type
  • short circuit proof at output
  • input terminals: screw terminals
  • built-in alarm
 12 VDC 230 VAC 600 W
24 VDC 600 W

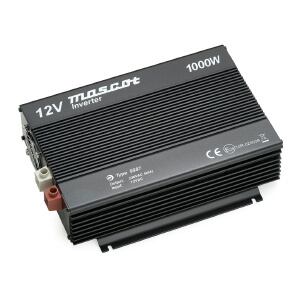

9987
 (264 kB)
  • modified sine wave
  • heat-sink type
  • short circuit proof at output
  • input terminals: screw terminals
  • built-in alarm
 12 VDC 230 VAC 1000 W
24 VDC 1000 W

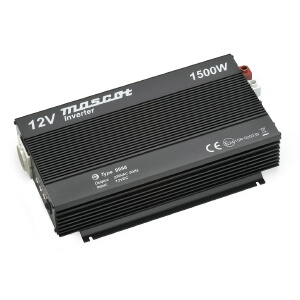

9988
 (257 kB)
  • modified sine wave
  • heat-sink type
  • short circuit proof at output
  • input terminals: screw terminals
  • built-in alarm
 12 VDC 230 VAC 1500 W
24 VDC 1500 W
