Modular and Magnetic Jack Connectors

Magnetic RJ45 Connectors

RJ45 modular jacks with integrated network magnetics.

Part type Description Contact
arrangement		 Number of
ports 		Contact
resistance
max.
[mΩ]		 Insulation
resistance
min.
[MΩ]		 Insert
loss
[dB]		 Return
loss
[dB]		 Enlarge using the cursor

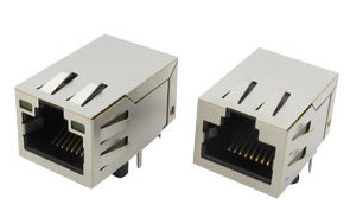

A6X Series
 (364 kB)
  • RJ45 modular jacks with integrated network magnetics providing signal integrity, DC isolation and PHY chip protection
  • single row or stacked multiport units
  • 10/100/1000 Base T options - full IEEE 802.3 compliance
  • LED option available - visual indication of port status and activity information
  • contact plating: gold plating over nickel for the mating area, tin plating for the tail
  • compatible with FCC Part 68 modular plug
  • advanced EMI/RMI suppression
 8P8C 1 / 2 / 4 / 8
(single row)

2 (stacked 2x1)
4 (stacked 2x2)
8 (stacked 2x4)
16 (stacked 2x8)		 30 100 -1 @ 100 MHz -13.5 @ 100 MHz
