D-Sub Connectors

Parallel Port D-Sub Connectors

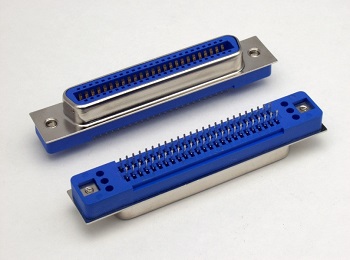

B57 connectors are parallel port interfaces fully compatible with all industry standards. Both board receptacle and male plug cable versions are available.

Part type Description Total number
of contacts		 Nominal
thickness
of PCB		 Current
max.
[A]		 Insulator
withstanding
voltage
min.
[V]		 Contact
resistance
max.
[mΩ]		 Insulation
resistance
min.
[MΩ]		 Operating
temperature
[°C]		 Enlarge using the cursor
B57 Series
 (530 kB)
  • parallel port D-Sub
  • variety of mounting options
  • intermateable with comparable series connectors
  • contact plating: gold on the contact area, tin on the contact tails, nickel underplate
 14, 24, 36, 50 0.062"
(1.57 mm)
0.093"
(2.36 mm)
0.125"
(3.18 mm)		 5 1200 30 1000 -55 – +105
