D-Sub Connectors

Machined D-Sub Connectors

D-Sub connectors with precision machined contacts available from 9 to 62 positions. Standard and high density, with vertical and right angle body styles available. A number of mounting and contact plating options are available.

Part type Description Total number
of contacts		 Contact
spacing		 Row
spacing		 Current
max.
[A]		 Insulator
withstanding
voltage
min.
[V]		 Contact
resistance
max.
[mΩ]		 Insulation
resistance
min.
[MΩ]		 Operating
temperature
[°C]		 Enlarge using the cursor
621M Series
622M Series
 (356 kB)
  • a series of D-Sub connectors: 621 - plug, 622 - receptacle
  • two contact rows with 0.318" (8.08 mm) footprint right-angle bend
  • through-hole mounting
  • contact plating: gold over nickel for the mating area, tin plating on contact tails
  • metal shell provides EMI / RFI shielding
  • compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000 10 5000 -55 – +105
627M Series
628M Series
 (357 kB)
  • a series of D-Sub connectors: 627 - plug, 628 - receptacle
  • low and high profiles available
  • two contact rows
  • through-hole vertical mounting
  • contact plating: gold over nickel for the mating area, tin plating on contact tails
  • metal shell provides EMI / RFI shielding
  • compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements
 9, 15, 25, 37, 50 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000 10 5000 -55 – +105
629M Series
630M Series
 (344 kB)
  • a series of D-Sub connectors: 629 - plug, 630 - receptacle
  • two contact rows with 0.370" (9.44 mm) footprint right-angle bend
  • through-hole mounting
  • contact plating: gold over nickel for the mating area, tin plating on contact tails
  • metal shell provides EMI / RFI shielding
  • compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000 10 5000 -55 – +105
633M Series
634M Series
 (346 kB)
  • a series of High-Density D-Sub connectors: 633 - plug, 634 - receptacle
  • three contact rows with 0.350" (8.89 mm) footprint right-angle bend
  • through-hole mounting
  • contact plating: gold over nickel for the mating area, tin plating on contact tails
  • metal shell provides EMI / RFI shielding
  • compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements
 15, 26, 44, 62, 78 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 10 5000 -55 – +105
637M Series
638M Series
 (503 kB)
  • a series of High-Density D-Sub connectors: 637 - plug, 638 - receptacle
  • low and high profiles available (high profile in 15- and 26-pin versions only)
  • three contact rows
  • through-hole vertical mounting
  • contact plating: gold over nickel for the mating area, tin plating on contact tails
  • metal shell provides EMI / RFI shielding
  • compliance with MIL-C-24038, EIA RS-232 and RS-449 requirements
 15, 26, 44, 62, 78 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 10 5000 -55 – +105

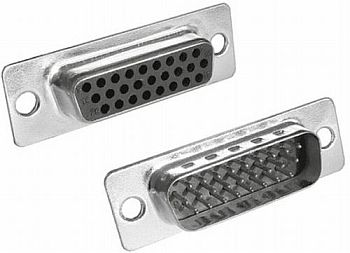

MH-HDD-xx-M-N-B-S
 (123 kB)
  • a series of High-Density D-Sub connectors for PCB: MHHDD-xx-M-N-B-S - plug, MHHDD-xx-F-N-B-S - receptacle; xx - number of contacts
  • three contact rows
  • stamped & formed contacts, min. 100 inserts
  • through-hole vertical mounting
  • contact termination: PCB tail
  • contact plating: gold over nickel
 15, 26, 44, 62 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 2 1000 15 1000 -55 - +125
MH-HDD-xx-F-N-B-S
 (123 kB) 		1000
MH-HDD-xx-M-N-B-M
 (84 kB)
  • a series of High-Density D-Sub connectors for PCB: MHHDD-xx-M-N-B-M - plug, MHHDD-xx-F-N-B-M - receptacle; xx - number of contacts
  • three contact rows
  • machined contacts, min. 500 inserts
  • through-hole vertical mounting
  • contact termination: PCB tail
  • contact plating: gold over nickel
 15, 26, 44, 62 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 30 1000 -55 - +105
MH-HDD-xx-F-N-B-M
 (82 kB) 		1000
MHDBxx-SP
 (164 kB)
  • a series of D-Sub connectors for cable: MHDBxx-SP - plug, MHDBxx-SS - receptacle; xx - number of contacts
  • two contact rows
  • stamped & formed contacts, min. 100 inserts
  • cable mounting, contact termination: solder cup tail
  • contact plating: gold over nickel
 9, 15, 25, 37, (50 on request) 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000 20 1000 -55 – +105
MHDBxx-SS
 (165 kB) 		1000
MHDMxx-SP
 (172 kB)
  • a series of D-Sub connectors for cable: MHDMxx-SP - plug, MHDMxx-SS - receptacle; xx - number of contacts
  • two contact rows
  • machined contacts, min. 500 inserts
  • cable mounting, contact termination: solder cup tail
  • contact plating: gold over nickel
 9, 15, 25, 37, 50 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000   1000 -55 – +105
MHDMxx-SS
 (170 kB) 		1000
MH-HDS-xx-M-T-B-S
 (136 kB)
  • a series of High-Density D-Sub connectors for cable: MHHDS-xx-M-T-B-S - plug, MHHDS-xx-F-T-B-S - receptacle; xx - number of contacts
  • three contact rows
  • stamped & formed contacts, min. 100 inserts
  • cable mounting, contact termination: solder cup tail
  • contact plating: gold over nickel
 15, 26, 44, 62 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 30 1000 -55 – +105
MH-HDS-xx-F-T-B-S
 (136 kB) 		1000
MH-HDS-xx-M-T-B-M
 (84 kB)
  • a series of High-Density D-Sub connectors for cable: MHHDS-xx-M-T-B-M - plug, MHHDS-xx-F-T-B-M - receptacle; xx - number of contacts
  • three contact rows
  • machined contacts, min. 500 inserts
  • cable mounting, contact termination: solder cup tail
  • contact plating: gold over nickel
 15, 26, 44, 62 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 30 1000 -55 – +105
MH-HDS-xx-F-T-B-M
 (86 kB) 		1000
MHDBCxx-SP
 (115 kB)
  • a series of D-Sub connectors for cable: MHDBCxx-SP - plug, MHDBCxx-SS - receptacle; xx - number of contacts
  • two contact rows
  • stamped & formed contacts, min. 100 inserts
  • cable mounting, contact termination: crimp
  • contact plating: gold over nickel
 9, 15, 25, 37, (50 on request) 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 3 1000 30 1000 -55 – +105
MHDBCxx-SS
 (150 kB) 		1000
MH-HDBCxx-SP
 (76 kB)
  • a series of High-Density D-Sub connectors for cable: MHHDBCxx-SP - plug, MHHDBCxx-SS - receptacle; xx - number of contacts
  • three contact rows
  • stamped & formed contacts, min. 100 inserts
  • cable mounting, contact termination: crimp
  • contact plating: gold over nickel
 15, 26, 44, 62 0.090"
(2.29 mm)		 0.078"
(1.98 mm)		 5 1000 30 1000 -55 – +105
MH-HDBCxx-SS
 (77 kB) 		1000
MH1055x
 (547 kB)
  • a series of IDC D-Sub connectors for cable: MH1055x - plug, MH1057x - receptacle; x - version
  • two contact rows
  • cable mounting, IDC type
  • connector mounting method: thru-holes
  • contact plating: gold over nickel
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 1.5 1000 10 500 -55 – +125
MH1057x
 (547 kB) 		1000
MH1056x
 (547 kB)
  • a series of IDC D-Sub connectors for cable: MH1056x - plug, MH1059x - receptacle; xx - number of contacts
  • two contact rows
  • cable mounting, IDC type
  • connector mounting method: clinch nuts
  • contact plating: gold over nickel
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 1.5 1000 10 500 -55 – +125
MH1059x
 (547 kB) 		1000
MHDDxx-M-T-B-S
 (146 kB)
  • a series of D-Sub connectors for PCB: MHDDxx-M-T-B-S - plug, MHDDxx-F-T-B-S - receptacle; xx - number of contacts
  • two contact rows
  • stamped & formed contacts, min. 100 inserts
  • through-hole vertical mounting
  • contact termination: PCB tail
  • contact plating: gold over nickel
 9, 15, 25, 37, (50 on request) 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 3 1000 35 1000 -55 – +85
MHDDxx-F-T-B-S
 (147 kB) 		1000
MHDDxx-M-T-B-M
 (114 kB)
  • a series of D-Sub connectors for PCB: MHDDxx-M-T-B-M - plug, MHDDxx-F-T-B-M - receptacle; xx - number of contacts
  • two contact rows
  • machined contacts, min. 500 inserts
  • through-hole vertical mounting
  • contact termination: PCB tail
  • contact plating: gold over nickel
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000   1000 -55 – +105
MHDDxx-F-T-B-M
 (113 kB) 		1000
MHDDxx-M-T-B-S-RBM
 (102 kB)
  • a series of D-Sub connectors for PCB: MHDDxx-M-T-B-S-RBM - plug, MHDDxx-F-T-B-S-RBM - receptacle; xx - number of contacts
  • two contact rows
  • stamped & formed contacts, min. 100 inserts
  • through-hole right-angle mounting
  • contact termination: PCB tail with 0.370" (9.4 mm) footprint right-angle bend
  • contact plating: gold over nickel
 9, 15, 25, 37, (50 on request) 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 3 1000 25 5000 -55 – +85
MHDDxx-F-T-B-S-RBM
 (98 kB) 		1000
MHDDxx-M-T-B-M-RBM
 (198 kB)
  • a series of D-Sub connectors for PCB: MHDDxx-M-T-B-M-RBM - plug, MHDDxx-F-T-B-M-RBM - receptacle; xx - number of contacts
  • two contact rows
  • machined contacts, min. 500 inserts
  • through-hole right-angle mounting
  • contact termination: PCB tail with 0.370" (9.4 mm) footprint right-angle bend
  • contact plating: gold over nickel
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 5 1000 10 5000 -55 – +125
MHDDxx-F-T-B-M-RBM
 (111 kB) 		1000

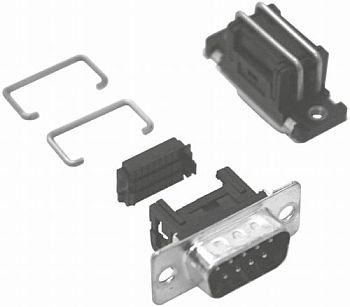

MHDF2-xx-SP-SM
 (101 kB)
  • a series of IDC D-Sub connectors for cable: MHDF2-xx-SP-SM - plug, MHDF2-xx-SS-SM - receptacle; xx - number of contacts
  • two contact rows
  • stamped & formed contacts, min. 100 inserts
  • cable mounting, IDC type
  • connector mounting method: thru-holes
  • contact plating: gold over nickel
 9, 15, 25, 37 0.109"
(2.77 mm)		 0.112"
(2.84 mm)		 1 1000 15 1000 -55 – +105
MHDF2-xx-SS-SM
 (106 kB) 		1000
