EMC Components

Feed Through Noise Filters - SMD type

SMD type EMI filters, consisting of feed through ceramic capacitors which hardly allows residual inductance and ferrite core. Due to the feed through structure (DC resistance is extremely low) they can be used for large current circuit.

Type Description  Dimensions
[mm]		 Capacitance
[nF]		 Tolerance
[%]		 Working
voltage
[V]		 Withstanding
voltage VDC
[V]		 Rated current
[A]		 Temperature
characteristic		 Enlarge using the cursor

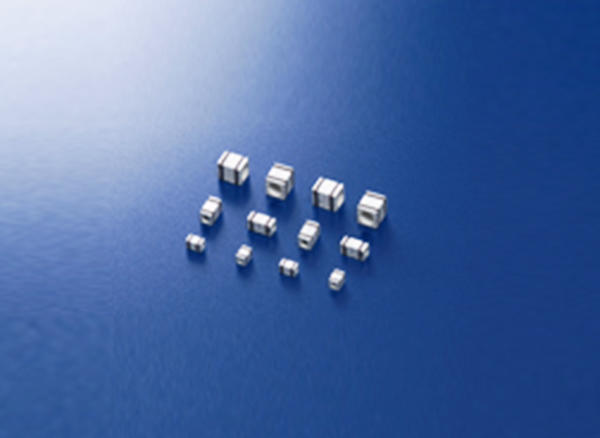

CTH20T470S10A-¤M CTH Series:
  • SMD type noise filters consisting of feed through capacitor, designed for EMI reduction of large current circuits
  • due to the feed through structure (DC resistance is extremely low) can be used for large current circuits
  • temperature ranges: -25 – +85 or -55 – +125
  • capacitance tolerance: S (+50% – -20%)
¤: Select T (taping package) or B (bulk package).

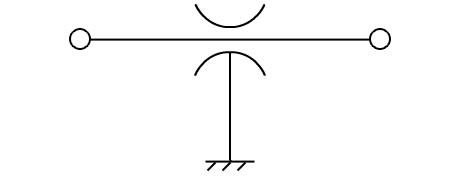

Equivalent circuit		 2.0x1.25x1.25 0.047 S (+50% – -20%) 50 125 10
CTH20R151S10A-¤M 2.0x1.25x1.25 0.150 S (+50% – -20%) 50 125 10
CTH20R271S10A-¤M 2.0x1.25x1.25 0.270 S (+50% – -20%) 50 125 10
CTH20V102S10A-¤M 2.0x1.25x1.25 1.000 S (+50% – -20%) 50 125 10
CTH30T101S15A-¤M 3.2x1.6x1.6 0.100 S (+50% – -20%) 100 250 15
CTH30R391S15A-¤M 3.2x1.6x1.6 0.390 S (+50% – -20%) 100 250 15
CTH30R681S15A-¤M 3.2x1.6x1.6 0.680 S (+50% – -20%) 100 250 15
CTH30U102S15A-¤M 3.2x1.6x1.6 1.000 S (+50% – -20%) 100 250 15
CTH30V222S15A-¤M 3.2x1.6x1.6 2.200 S (+50% – -20%) 100 250 15
CTH32R102S20A-¤M 3.2x2.5x2.5 1.000 S (+50% – -20%) 100 250 20
CTH32V332S20A-¤M 3.2x2.5x2.5 3.300 S (+50% – -20%) 100 250 20

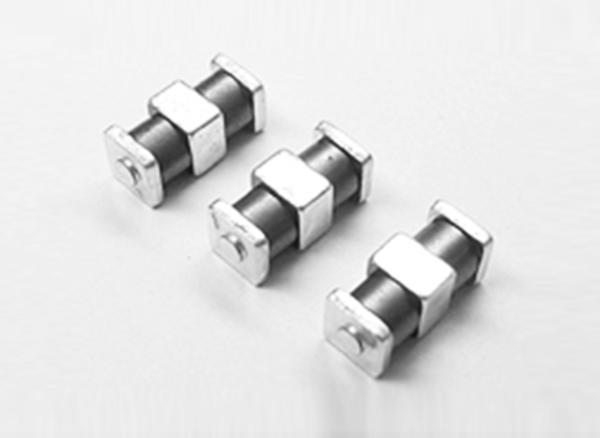

TNH73R2A473S15A TNH73 Series:
  • SMD type feed through EMI filter consisting of high capacity multilayer feed through capacitor and ferrite core
  • due to the feed through structure (DC resistance is extremely low) can be used for large current circuits
  • capacitance tolerance: S (+50% – -20%)

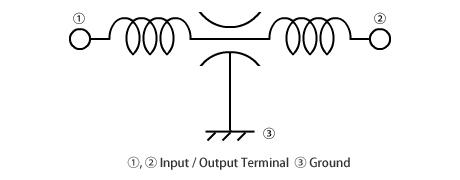

Equivalent circuit		 7.0x3.0x3.0 47 S (+50% – -20%) 100 250 15 X7R
TNH73R2A104S15A 7.0x3.0x3.0 100 100 250 15 X7R

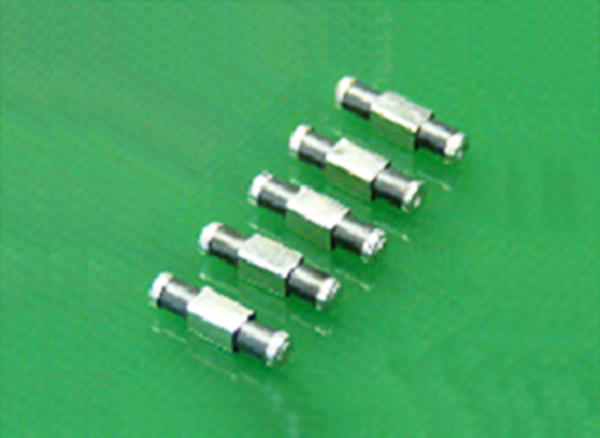

TNH61Y2A330S10A-¤M TNH61 Series:
  • SMD type feed through EMI filter consisting of high capacity multilayer feed through capacitor and ferrite core
  • due to the feed through structure (DC resistance is extremely low) can be used for large current circuits
  • capacitance tolerance: S (+50% – -20%)
  • temperature range: -55 – +125
¤: Select T (taping package) or B (bulk package).

Equivalent circuit		 6.8x1.6x1.6 0.033 S (+50% – -20%) 100 250 10
TNH61Y2A101S10A-¤M 6.8x1.6x1.6 0.100 100 250 10
TNH61S2A361S10A-¤M 6.8x1.6x1.6 0.360 100 250 10
TNH61S2A681S10A-¤M 6.8x1.6x1.6 0.680 100 250 10
TNH61V2A102S10A-¤M 6.8x1.6x1.6 1.000 100 250 10
