Capacitors

Multilayer Wire-Bondable Ceramic Capacitors

Wire-bondable ceramic capacitors suitable for mounting inside densely packed IC packages.

Type Description SMD size
[mm]		 Capacitance
[nF]		 Tolerance
[%]		 Working
voltage
[V]		 Operating
temperature
[°C]		 Enlarge using the cursor

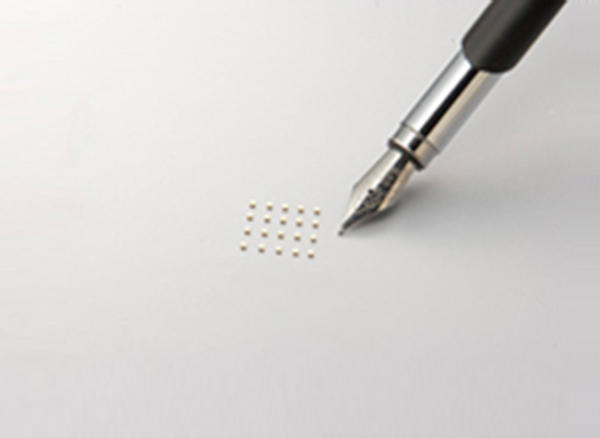

Y0503X5R0J104M Y Series
  • wire-bondable multilayer ceramic capacitors
  • miniature sizes
  • application: IC packages, optical devices for telecommunications, measuring and medical devices
  • temperature range: -55 – +85
  • temperature characteristic: X5R
  • capacitance tolerance: M (±20%)
Example assembly		 0.5x0.5x0.35 100 M (±20%) 6.3 -55 – +85
Y0303X5R1C102M 0.38x0.38x0.3 1 16
Y0503X5R1C102M 0.5x0.5x0.35 1 16
Y0503X5R1C222M 0.5x0.5x0.35 2.2 16
Y0503X5R1C103M 0.5x0.5x0.35 10 16
Y0805X5R1C223M 0.8x0.8x0.5 22 16
Y1006X5R1C104M 1.0x1.0x0.6 100 16
Y0805X5R1E103M 0.8x0.8x0.5 10 25
Y1006X5R1E473M 1.0x1.0x0.6 47 25
Y0503X5R1H471M 0.5x0.5x0.35 0.47 50
Y0805X5R1H472M 0.8x0.8x0.5 4.7 50
Y1006X5R1H103M 1.0x1.0x0.6 10 50
Y1006X5R1H223M 1.0x1.0x0.6 22 50
Y0503X5R2A101M 0.5x0.5x0.35 0.1 100
Y0503X5R2A221M 0.5x0.5x0.35 0.22 100
Y0805X5R2A102M 0.8x0.8x0.5 1 100
Y0805X5R2A222M 0.8x0.8x0.5 2.2 100

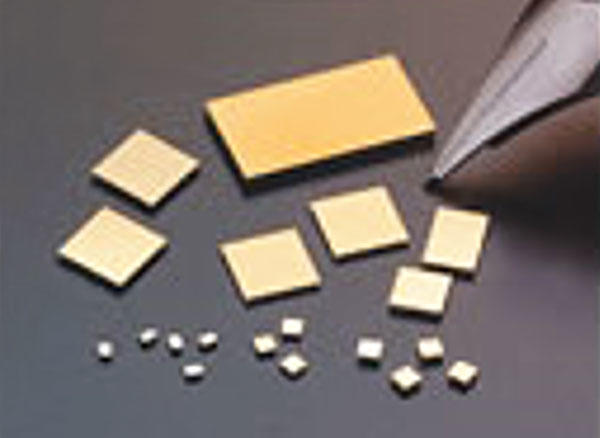

SL02X7S1A221M12H SL Series
  • wire-bondable multilayer ceramic capacitors
  • miniature sizes
  • very small thickness
  • application: high density IC packages, optical devices for telecommunications, measuring and medical devices
  • temperature range: -55 – +125
  • temperature characteristic: X7R, X7S
  • capacitance tolerance: M (±20%)
 0.25x0.25x0.12 0.22 M (±20%) 10 -55 – +125
SL03X7S1A471M12H 0.38x0.38x0.12 0.47 10
SL05X7S1A102M12H 0.50x0.50x0.12 1.0 10
SL06X7S1A152M12H 0.63x0.63x0.15 1.5 10
SL07X7S1A222M12H 0.76x0.76x0.25 2.2 10
SL10X7S1A332M12H 0.76x0.76x0.25 3.3 10
SL02X7R1E101M15 0.25x0.25x0.12 0.1 25
SL02X7S1E151M15H 0.25x0.25x0.12 0.15 25
SL03X7R1E221M15 0.38x0.38x0.12 0.22 25
SL03X7S1E331M15H 0.38x0.38x0.12 0.33 25
SL05X7R1E471M15 0.50x0.50x0.12 0.47 25
SL05X7S1E681M15H 0.50x0.50x0.12 0.68 25
SL06X7S1E102M15H 0.63x0.63x0.15 1.0 25
SL07X7R1E102M15 0.76x0.76x0.25 1.0 25
SL07X7S1E152M15H 0.76x0.76x0.25 1.5 25
SL03X7R1H101M25 0.38x0.38x0.12 0.1 50
SL03X7S1H221M25H 0.38x0.38x0.12 0.22 50
SL05X7R1H221M25 0.50x0.50x0.12 0.22 50
SL05X7S1H471M25H 0.50x0.50x0.12 0.47 50
SL06X7R1H471M25 0.63x0.63x0.15 0.47 50
SL06X7S1H681M25H 0.63x0.63x0.15 0.68 50
SL07X7S1H102M25H 0.76x0.76x0.25 1.0 50
SL10X7R1H102M25 1.00x1.00x0.25 1.0 50
SL10X7S1H152M25H 1.00x1.00x0.25 1.5 50
