Card Edge Connectors

PressFit Card Edge Connectors

Solderless card edge connectors which utilize a contact design that allows for ease of assembly into the PCB by pressing into matching metalized holes.

Part type	Description	Total number of contacts	Contact spacing	Connector mounting pattern	Nominal thickness of PCB	Current max. [A]	Insulator withstanding voltage min. [V]	Contact resistance max. [mΩ]	Insulation resistance min. [MΩ]	Operating temperature [°C]	Enlarge using the cursor

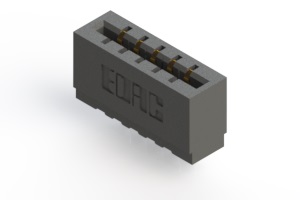

717 Series  (230 kB)	0.156" (3.96 mm) pitch pressfit solderless card edge connector single or dual row configurations low profile insulator body 0.550" (13.97 mm) press-fit compliant section for gas-tight reliable connection in plated through-holes (eliminates soldering operations) contact termination: PCB tail and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on contact tails, nickel underplate; other plating options available upon request	5 - 43 (1 row) 10 - 86 (2 rows)	0.156" (3.96 mm)	0.156" (3.96 mm) x 0.200" (5.08 mm)	0.062" (1.57 mm)	3	1200	10	5000	-65 – +125	1

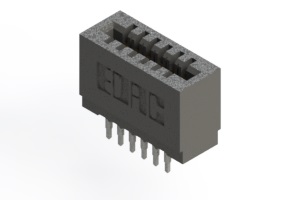

725 Series  (263 kB)	0.100" (2.54 mm) pitch pressfit solderless card edge connector single or dual row configurations low profile insulator body 0.550" (13.97 mm) ultra-mate compliant section for gas-tight reliable connection in plated through-holes (eliminates soldering operations) contact termination: PCB tail and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on contact tails, nickel underplate; other plating options available upon request	5 - 75 (1 row) 10 - 150 (2 rows)	0.100" (2.54 mm)	0.100" (2.54 mm) x 0.200" (5.08 mm)	0.062" (1.57 mm)	3	1200	10	5000	-65 – +125	1

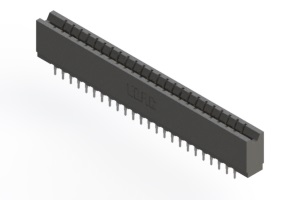

737 Series  (243 kB)	0.156" (3.96 mm) pitch pressfit solderless card edge connector single or dual row configurations high profile insulator body 0.645" (16.38mm) ultra-mate compliant section for gas-tight reliable connection in plated through-holes (eliminates soldering operations) contact termination: PCB tail and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on contact tails, nickel underplate; other plating options available upon request	5 - 43 (1 row) 10 - 86 (2 rows)	0.156" (3.96 mm)	0.156" (3.96 mm) x 0.200" (5.08 mm)	0.062" (1.57 mm)	3	1200	10	5000	-65 – +125	1
745 Series  (279 kB)	0.100" (2.54 mm) pitch pressfit solderless card edge connector single or dual row configurations high profile insulator body 0.645" (16.38mm) ultra-mate compliant section for gas-tight reliable connection in plated through-holes (eliminates soldering operations) contact termination: PCB tail and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on contact tails, nickel underplate; other plating options available upon request	5 - 75 (1 row) 10 - 150 (2 rows)	0.100" (2.54 mm)	0.100" (2.54 mm) x 0.200" (5.08 mm)	0.062" (1.57 mm)	3	1200	10	5000	-65 – +125	1

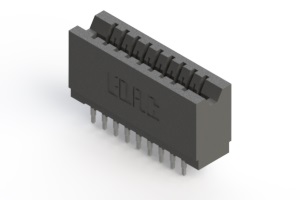

746 Series  (267 kB)	0.125" (3.18 mm) pitch pressfit solderless card edge connector single or dual row configurations high profile insulator body 0.645" (16.38mm) ultra-mate compliant section for gas-tight reliable connection in plated through-holes (eliminates soldering operations) contact termination: PCB tail and 0.025" (0.64 mm) square wire wrap polarizing keys contact plating: gold on the mating area, tin on contact tails, nickel underplate; other plating options available upon request	5 - 60 (1 row) 10 - 120 (2 rows)	0.125" (3.18 mm)	0.125" (3.18 mm) x 0.250" (6.35 mm)	0.062" (1.57 mm)	3	1500	10	5000	-65 – +125	1
